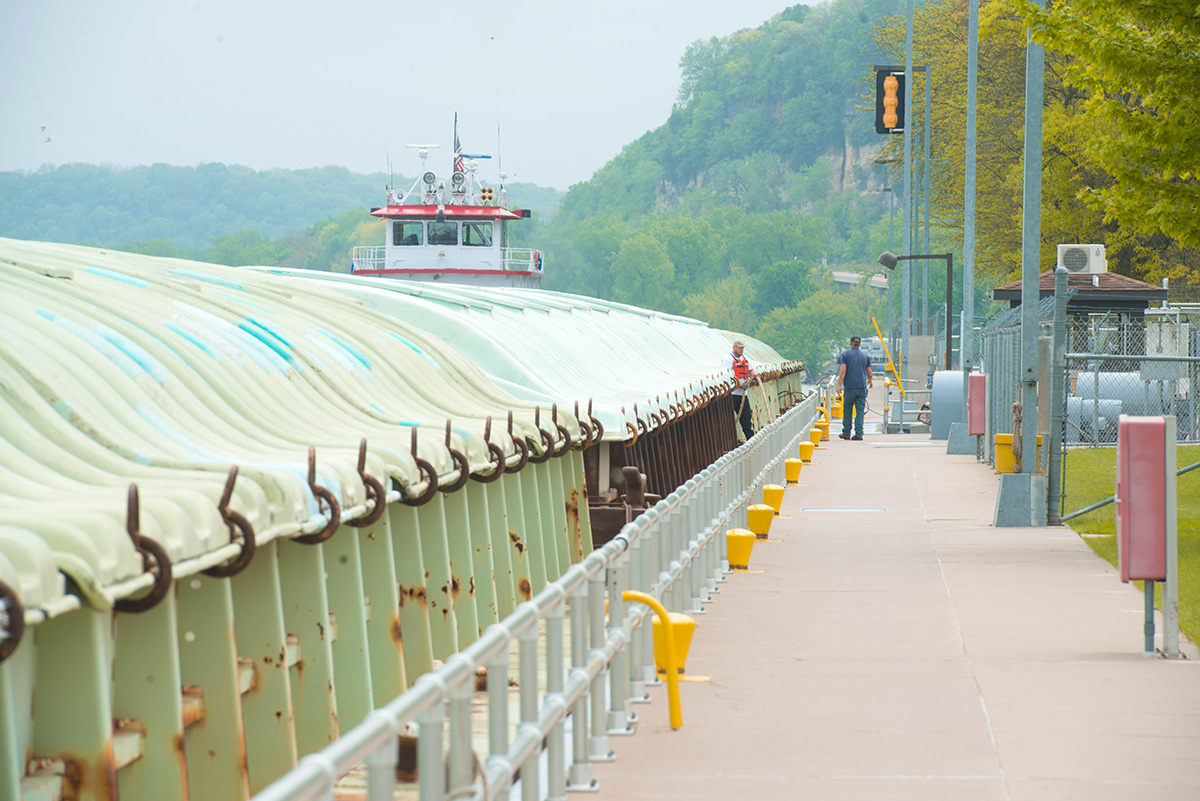

Mississippi lock and dam

(Photo: Iowa Soybean Association)

Waterway woes

September 29, 2022 | Jeff Hutton

As if agricultural shippers did not have enough supply chain challenges to occupy multiple lifetimes, there is current and growing concern related to the diminished water levels along the inland waterway system that will impact barge transportation. This will become more acute as we move deeper into the harvest season.

Mike Steenhoek, executive director of the Soy Transportation Coalition, says due to the scarcity of precipitation throughout the year, the water depth along navigable waterways is limiting the efficiency of barge transportation in two ways – channel depth and channel width.  Currently, the area of particular concern is the Mississippi River south of St. Louis.

Channel depth

According to Steenhoek, barge companies are having to load barges lighter in order to prevent groundings, which have already occurred and are a growing concern. A typical barge, he says, can be loaded with 1,500 short tons of freight (50,000 bushels of soybeans). A 15-barge tow can therefore easily accommodate 750,000 bushels of soybeans. Each reduced foot of water depth (i.e. “draft”) will result in 150-200 fewer short tons (5,000-6,700 fewer bushels of soybeans) being loaded per barge.

Assuming a soybean-growing region will need to transport 100 million bushels of soybeans via barge, under normal conditions, 100 million bushels ÷ 750,000 bushels per 15 barge tow = 133 barge tows required.

If the water level for loading is decreased by one foot and if you utilize the conservative 150 fewer short tons (5,000 fewer bushels) per load, the 15-barge tow will be loaded with 75,000 fewer bushels, according to Steenhoeck.

“This is the equivalent of removing the entire production of three soybean farms from a single barge tow (500 acres of soybeans per farm x 50 bushels an acre = 25,000 bushels),” he says.

This means it will take more barge tows to move nearly the same number of bushels.

“Under this scenario, 148 barge tows will be required (100 million ÷ 675,000 bushels per 15 barge tow),” he says.

Channel width

Barge companies are announcing a maximum of 25 barges south of St. Louis. Since there are no locks and dams located on the Mississippi River south of St. Louis, barge tow sizes are larger since they do not need to transit lock chambers and the size limitations they impose. During drought conditions, Steenhoek says, the shipping channel becomes narrower, which necessitates reduced tow sizes. Barge tows south of St. Louis can often include 30-40 barges. Therefore, a reduced maximum to 25 barges is significant.

“When attempting to transport an expected robust harvest via a less efficient inland waterway system, it becomes analogous to attaching a garden hose to a fire hydrant,” Steenhoek says. “Having to load barges lighter and restricting the number of barges results in needing more roundtrips to accommodate a given amount of volume. The expected result of this is higher barge shipping rates.”

According to the U.S. Department of Agriculture, transporting a ton of soybeans – loaded along the Mid-Mississippi River (i.e. – region between St. Paul and St. Louis) cost $51.02 per ton during the week ending on Sept. 20, 2022. For the week ending Sept. 21, 2021 (one year earlier), the same shipment cost $38.30 – a 33% increase year over year.

“Unfortunately, precipitation over the next month is expected to be limited – further exacerbating the shipping challenges,” Steenhoek says. “When combined with an overall supply chain under stress, agricultural shippers are expecting some difficulties in getting soybeans and grain to market. Fortunately, we have the most productive farmers on the planet and an infrastructure that, despite these challenges, remains the envy of other soybean and grain producing countries, but the current and expected conditions along the Mississippi River are clearly a reason for concern.”
